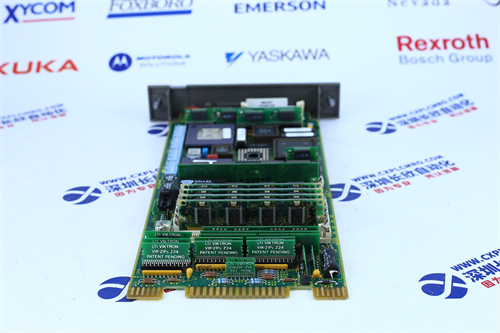

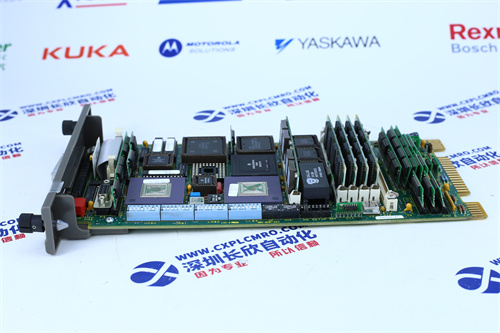

TRICONEX BP9229-010
The TRICONEX BP9229-010 module is an I/O module for the Triconex Safety Instrumentation System (SIS). It provides a variety of I/O channels for connecting sensors, actuators, and other field devices.
The BP9229-010 module has a redundant design to ensure high reliability and availability. It contains two separate I/O subsystems that are monitored by Triconex’s voting logic. If one I/O subsystem fails, the other I/O subsystem continues to run without interrupting I/O operations.
The BP9229-010 module complies with SIL 2 and IEC 61508 standards.
Product characteristics
Provides a variety of I/O channels, including analog, digital, and serial ports
Redundant design for high reliability and availability
It supports hot swap and can be replaced while running
Meets SIL 2 and IEC 61508 standards
Product parameter
Parameter value
Number of I/O channels 32
16 analog I/ OS, which can be configured as 4-20mA or 0-10V
Number of I/ OS 16
2 serial ports
The power supply requires 24 VDC
Power consumption 20 W
Operating temperature -40 to 70 °C
Protection level IP66
