TRICONEX 8112R

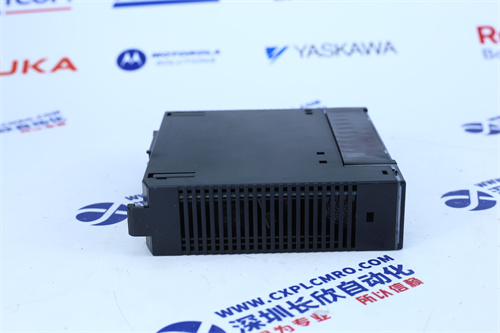

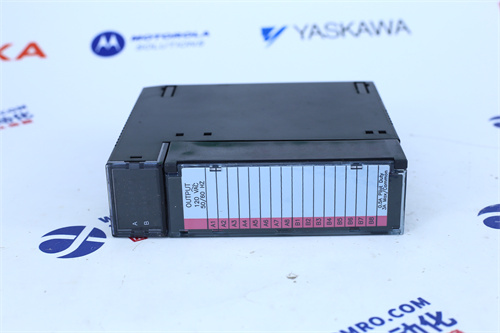

The TRICONEX 8112R module is a remote I/O module for use in the Triconex Safety Instrumentation System (SIS). It provides remote I/O connectivity for Triconex modules, allowing you to extend I/O points beyond the control room.
The 8112R module contains eight logic slots that can be used to install a variety of Triconex I/O modules, including digital input modules, digital output modules, analog input modules, and analog output modules.
The 8112R module has a redundant design to ensure high reliability and availability. Each logical slot contains two separate I/O circuits that are monitored by Triconex’s voting logic. If one I/O circuit fails, the other I/O circuit continues to run without interrupting the process.
The 8112R module complies with SIL 2 and IEC 61508 standards.
Product characteristics
Provides remote connectivity for Triconex I/O modules
Redundant design for high reliability and availability
Meets SIL 2 and IEC 61508 standards
Product parameter
Parameter value
Number of slots 8
Power Supply Type Redundant power supply
Power supply voltage 24 VDC
Power consumption 50 W
Operating temperature -40 to 70 °C
Protection level IP66
Dimensions 483 x 234 x 89 mm
Weight 9.3kg
