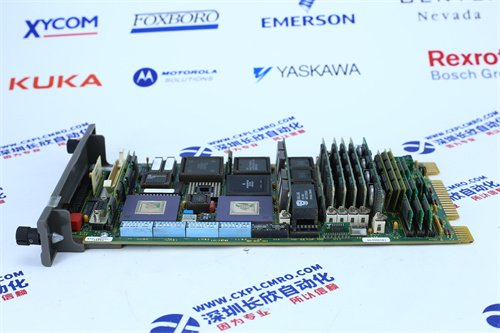

TRICONEX 5381
The TRICONEX 5381 module is an analog output module for use in the Triconex Safety Instrumentation System (SIS). It provides 4 separate analog current or voltage output channels that can be used to control various final control elements, such as valves, drivers and indicators.
The 5381 module has a redundant design to ensure high reliability and availability. Each channel contains two separate analog output circuits that are monitored by Triconex’s voting logic. If one channel fails, the other will continue to run without interrupting the process.
The 5381 module supports several communication protocols, including Modbus RTU, Modbus TCP, and Profibus DP. This makes it easy to integrate into existing control systems.
Product characteristics
4 independent analog current or voltage output channels
Redundant design for high reliability and availability
Multiple communication protocols are supported: Modbus RTU, Modbus TCP and Profibus DP
Suitable for a variety of final control elements
Meets SIL 2 and IEC 61508 standards
Product parameter
Parameter value
Number of channels 4
Output Type Current or voltage
The output range is configurable
Accuracy 0.1% full scale
Resolution 16 bit
Response time ≤ 250 ms
Communication protocols Modbus RTU, Modbus TCP, Profibus DP
The power supply requires 24 VDC
Power consumption 10 W
Operating temperature -40 to 70 °C
Protection level IP66
Dimensions 190 x 144 x 35 mm
Weight 1.2kg
