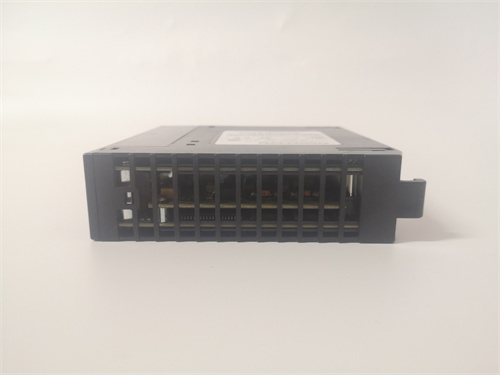

SCHNEIDER 140CRA93200

Product Description:

The Schneider Electric 140CRA93200 module is a RIO branch adapter module for the Modicon Quantum automation platform. The module can be used to connect up to 27 I/O expansion modules.

Product parameters:

Cable type: 75Ω coaxial cable
Transmission rate: 1544 Mbit/s
Dynamic range: 35 dB
Isolation voltage: 500 V DC coaxial center and ground
Electrical connection: 2-hole terminal F, curved with redundant cable
Diagnostic startup: power-on and runtime
RAM address/data performs checksum
Power Consumption W: 3.8W 2 channels
Required bus current: 750 mA for 2 channels
Module classification: Standard
Specifications:

Dimensions: 102.3mm x 203.2mm x 9.5mm
Weight: 0.42 kg
Operating temperature: -40°C to +70°C
Storage temperature: -40°C to +85°C
Application scenario:

Mechanical control
Process control
Industrial automation
Main functions:

Connect up to 27 I/O expansion modules
Provides a transmission rate of 1544 Mbit/s
Supports 35 dB dynamic range
Provides isolation voltage of 500 V DC
Supports power-on and runtime diagnostic startup
