SC-TCMX01 51307198-175 HONEYWELL - Changxin Automation

SC-TCMX01 51307198-175 HONEYWELL

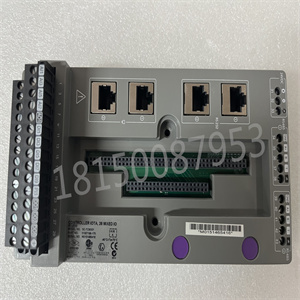

HONEYWELL SC-TCMX01 51307198-175 (1)

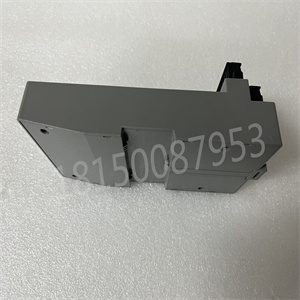

HONEYWELL SC-TCMX01 51307198-175 (3)

SC-TCMX01 51307198-175 HONEYWELL

EYWELL SC-TCMX01 51307198-175 product has the following parameters:

Operating Voltage:12-30 VDC

Power Consumption:4.8 W

Operating Temperature Range:-40 to 85°C

Humidity Range:5 to 95%RH

Dimensions:4.2 in H x 3.5 in W x 1.8 in D(10.7 cm H x 8.9 cm W x 4.6 cm D)

Weight:0.3 lb(136 g)

Description

SC-TCMX01 51307198-175 HONEYWELL

Product Content

The HONEYWELL SC-TCMX01 51307198-175 product comes with the following content:

One (1) SC-TCMX01 module
One (1) Installation and Operation manual
One (1) Safety Information manual

Product Parameters

The HONEYWELL SC-TCMX01 51307198-175 product has the following parameters:

Operating Voltage: 12-30 VDC
Power Consumption: 4.8 W
Operating Temperature Range: -40 to 85°C
Humidity Range: 5 to 95% RH
Dimensions: 4.2 in H x 3.5 in W x 1.8 in D (10.7 cm H x 8.9 cm W x 4.6 cm D)
Weight: 0.3 lb (136 g)

The HONEYWELL SC-TCMX01 51307198-175 is a temperature control module that is part of the Honeywell TDC 3000 control system. Its primary function is to receive temperature readings from various sensors and provide control signals to actuators in order to maintain the desired temperature setpoint.

The module has the following parameters:

Input voltage: 24VDC
Temperature range: -50°C to +50°C
Output voltage: 0-10VDC
Control algorithm: Proportional-Integral-Derivative (PID)
Communication protocol: Honeywell’s proprietary protocol

In addition to its primary function, the module also has diagnostic capabilities, allowing it to detect and report any faults or malfunctions in the system.
