REF615A_E HAFAABAAABE1BCA1XE ABB - Changxin Automation

REF615A_E HAFAABAAABE1BCA1XE ABB

REF615A_E HAFAABAAABE1BCA1XE(2)

REF615A_E HAFAABAAABE1BCA1XE(6)

REF615A_E HAFAABAAABE1BCA1XE ABB

Technical Specifications

Operating voltage:100-240 V AC/DC

Frequency:50/60 Hz

Operating temperature range:-40°C to+70°C

Enclosure rating:IP40

Communication interfaces:Ethernet,RS485,IEC 61850

Description

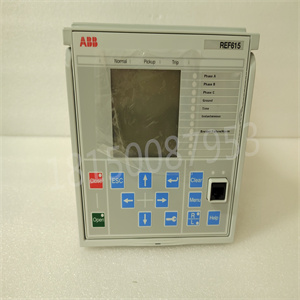

REF615A_E HAFAABAAABE1BCA1XE ABB

This document provides detailed information and parameters for the ABB REF615A_E HAFAABAAABE1BCA1XE product.

Product Description

The ABB REF615A_E is a versatile, IEC 61850-compatible feeder protection relay that offers a wide range of protection and control functions. It is designed for use in medium-voltage distribution networks and can be used in both single- and three-phase applications.

Key Features

IEC 61850-compatible
Wide range of protection and control functions
Suitable for single- and three-phase applications
Advanced communication capabilities
Comprehensive monitoring and diagnostic features

Technical Specifications

Operating voltage: 100-240 V AC/DC
Frequency: 50/60 Hz
Operating temperature range: -40°C to +70°C
Enclosure rating: IP40
Communication interfaces: Ethernet, RS485, IEC 61850

Parameter Settings

The ABB REF615A_E offers a wide range of parameter settings that can be configured to meet the specific needs of your application. These include:

Overcurrent protection settings
Earth fault protection settings
Directional protection settings
Voltage supervision settings
Load shedding settings
Transformer protection settings
Circuit breaker failure protection settings

For more detailed information on parameter settings, please refer to the product manual.

Conclusion

The ABB REF615A_E is a highly versatile and reliable feeder protection relay that offers a wide range of protection and control functions. Its advanced communication capabilities and comprehensive monitoring and diagnostic features make it an ideal choice for medium-voltage distribution networks.
