PFTL201C 3BSE007913R50 50KN ABB
Product Description

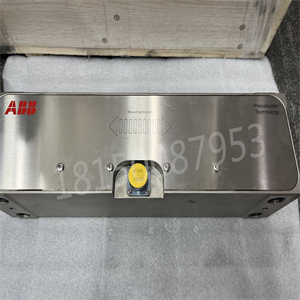

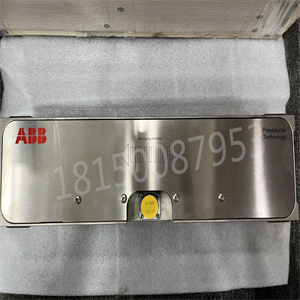

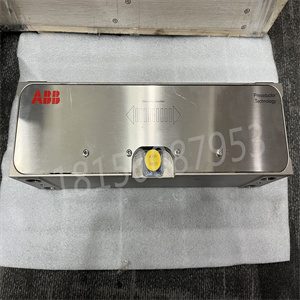

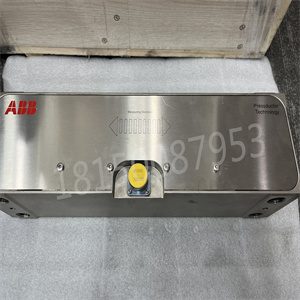

The PFTL201C 3BSE007913R50 50KN is a force measurement transducer produced by ABB. It is designed to measure tensile and compressive forces up to 50 kilonewtons (kN) and has a high accuracy of 0.05% full scale output. The transducer is made of stainless steel and has a compact design that allows it to be used in a variety of applications.
Parameters
The following are the technical parameters of the PFTL201C 3BSE007913R50 50KN transducer:
- Measuring range: -50 to 50 kN
- Output signal: 2 mV/V
- Non-linearity: < 0.05% FSO
- Hysteresis: < 0.05% FSO
- Non-repeatability: < 0.05% FSO
- Creep (30 minutes): < 0.05% FSO
- Zero balance: ± 2% FSO
- Input resistance: 350 Ω ± 0.5%
- Output resistance: 350 Ω ± 0.5%
- Insulation resistance: > 5000 MΩ (at 50 VDC)
- Excitation voltage: 10 VDC (recommended)
- Operating temperature: -40 to 80°C (-40 to 176°F)
- Protection class: IP67
Applications
The PFTL201C 3BSE007913R50 50KN transducer is suitable for use in a wide range of applications, such as:
- Tension and compression testing
- Material testing
- Force measurement in industrial processes
- Weighing systems
- Load monitoring in cranes and hoists
Conclusion
The PFTL201C 3BSE007913R50 50KN is a highly accurate and versatile force measurement transducer that can be used in many different applications. Its compact design and high accuracy make it a reliable choice for measuring both tensile and compressive forces up to 50 kN.
