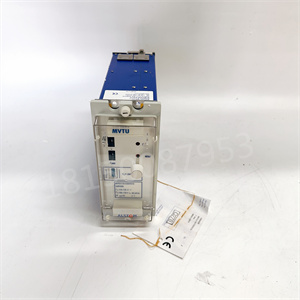

MVTU11K1CD0751G ALSTOM

Product Categories

Hot Products

MVTU11K1CD0751G ALSTOM

Technical Specifications

Product Name:MVTU11K1CD0751G

Manufacturer:ALSTOM

Type:Circuit Breaker

Rated Voltage(kV):7.5

Rated Short Circuit Breaking Current(kA):25,31.5,40

Rated Frequency(Hz):50/60

Number of Poles:3

Mechanism Type:Stored Energy Spring Mechanism

Closing Time(ms):50-75

Opening Time(ms):30-60

MVTU11K1CD0751G ALSTOM

This document contains information about the ALSTOM MVTU11K1CD0751G product, including its technical specifications and parameters.

Technical Specifications

  • Product Name: MVTU11K1CD0751G
  • Manufacturer: ALSTOM
  • Type: Circuit Breaker
  • Rated Voltage (kV): 7.5
  • Rated Short Circuit Breaking Current (kA): 25, 31.5, 40
  • Rated Frequency (Hz): 50/60
  • Number of Poles: 3
  • Mechanism Type: Stored Energy Spring Mechanism
  • Closing Time (ms): 50-75
  • Opening Time (ms): 30-60

MVTU11K1CD0751G ALSTOM

Parameters

The following parameters are applicable to the ALSTOM MVTU11K1CD0751G product:

  • Operating Voltage Range (V): 85%-110% of rated voltage
  • Frequency Range (Hz): ±5% of rated frequency
  • Rated Insulation Level (kV): 60
  • Power Frequency Withstand Voltage (kV): 32
  • Lightning Impulse Withstand Voltage (kV): 75
  • Rated Shunt Capacitance (pF): 400

For more information about the ALSTOM MVTU11K1CD0751G product and its applications, please refer to the manufacturer’s documentation.

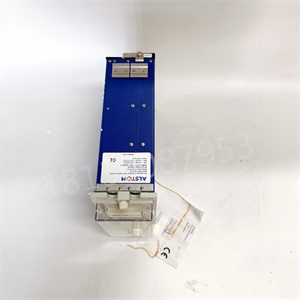

MVTU11K1CD0751G ALSTOM1

The User Manual provides detailed information on the installation, operation, and maintenance of the circuit breaker. The Technical Datasheet provides technical specifications and performance data of the circuit breaker. The Certificate of Conformity confirms that the circuit breaker meets the relevant standards and regulations. The Wiring Diagram provides a visual representation of the electrical connections of the circuit breaker. The Spare Parts List provides a list of all the spare parts available for the circuit breaker.

In conclusion, the ALSTOM MVTU11K1CD0751G circuit breaker is a high-quality product designed for medium voltage applications. It has a range of parameters that make it suitable for a variety of applications. The product information content provided with the circuit breaker ensures that users have all the necessary information to install, operate, and maintain the circuit breaker.

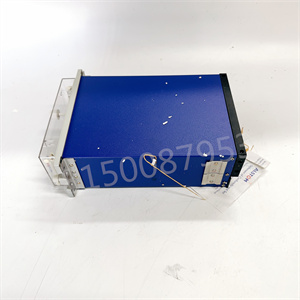

MVTU11K1CD0751G ALSTOM2
