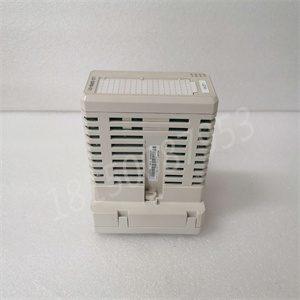

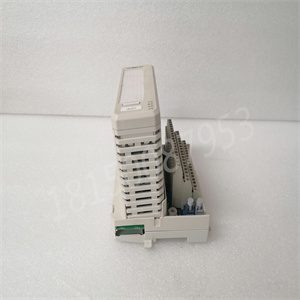

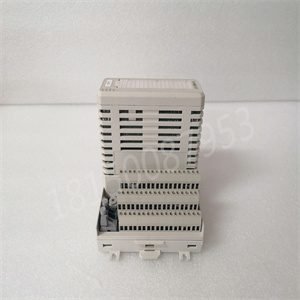

LDGRB-01 3BSE013177R1 ABB
Product Overview
The LDGRB-01 3BSE013177R1 is a type of relay module manufactured by ABB. It is designed to provide a reliable interface between control systems and external devices, such as motors, valves, and other control devices.
Features
The LDGRB-01 3BSE013177R1 comes with a range of features, including:
- 24 V DC power supply
- 8 digital inputs and 8 digital outputs
- LED indicators for each input and output
- Compact design
- Easy installation and configuration
Specifications
The LDGRB-01 3BSE013177R1 has the following specifications:
- Operating voltage: 24 V DC
- Current consumption: 0.5 A
- Operating temperature: -25°C to +60°C
- Storage temperature: -40°C to +85°C
- Maximum switching frequency: 10 Hz
- Maximum output current: 2 A per channel
- Maximum output voltage: 30 V DC
- Protection class: IP20
Parameters
The LDGRB-01 3BSE013177R1 has the following parameters:
- Input voltage range: 18-30 V DC
- Input current range: 5-30 mA
- Input resistance: 500 Ω
- Output voltage range: 0-30 V DC
- Output current range: 0-2 A
- Response time (input to output): < 4 ms
Conclusion
The LDGRB-01 3BSE013177R1 ABB relay module is a versatile and reliable product that is suitable for a wide range of industrial applications. Its compact design, easy installation, and range of features make it an excellent choice for control systems that require a reliable interface with external devices.
