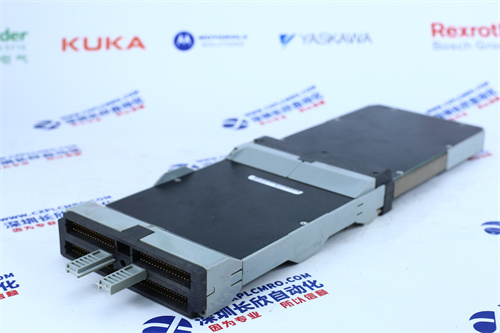

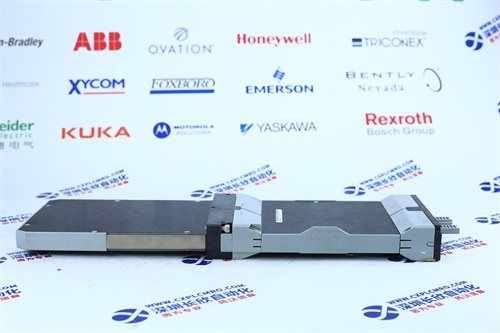

EMERSONA IPMC7616E-002

The Emerson AIMC7616E-002 module is a digital input module in the Eme

rson DeltaV system, which is mainly used to collect digital signals from field equipment, such as switching quantity, relay status, etc. The module converts these digital signals into standard digital signals for processing and control by the DeltaV system.

Product parameters and specifications:

Number of channels: 16
Input type: numeric input
Signal type: DC 24V
Isolation: Channels are isolated from each other
Interface: RIO (Remote I/O) bus
Working environment: Industrial environment
Other features: high reliability, strong anti-interference ability, easy to maintain
Main functions:
Digital signal acquisition: acquisition of digital signals from field equipment
Signal conversion: Converts a digital signal to a standard digital signal
Data transmission: The digital signal is transmitted to the DeltaV system
Condition monitoring: real-time monitoring of the status of field equipment
Alarm function: alarm is issued when the input signal changes
Application field:
Process control system: used to collect the status of pumps, valves, switches and other equipment
Safety system: Used to monitor safety interlock signals
Data acquisition system: used to collect the data of field equipment
Specification:
AIMC7616E-002: indicates the module model, indicating the digital input module
7616: Module series
E-002: indicates the specific module model, indicating specific configuration and functions
Note:
Installation environment: The module must be installed in a cabinet that meets requirements and is properly ventilated.
Connectivity: Modules need to be properly connected to field devices, the RIO bus, and other related devices.
Configuration: The module needs to be configured in the DeltaV system to set the input type and alarm threshold.
Maintenance: Periodically check the working status of the module to ensure its normal operation.
