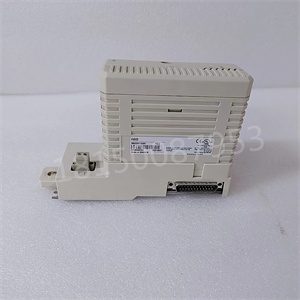

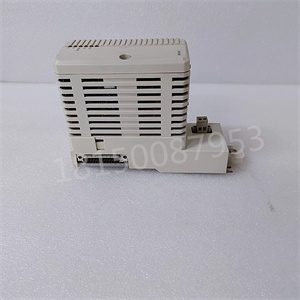

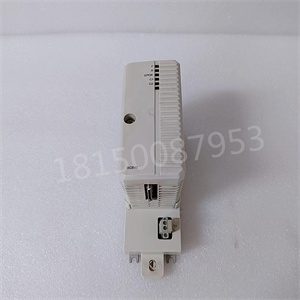

BC810K01 3BSE031154R1 ABB
This document provides detailed information about the BC810K01 3BSE031154R1 ABB product, including its features, specifications, and parameters.
Content
The BC810K01 3BSE031154R1 ABB product is a PROFIBUS DP-V1 communication adapter module that provides fast and reliable communication between ABB controllers and external devices. It is designed to work with various ABB controllers, including AC500, AC800M, and AC900F.
The BC810K01 3BSE031154R1 ABB product supports a wide range of PROFIBUS DP-V1 communication features, including cyclic and acyclic data exchange, diagnostics, and parameterization. It also supports multiple DP-V1 master connections, enabling it to communicate with multiple devices simultaneously.
Parameters
The BC810K01 3BSE031154R1 ABB product comes with the following parameters:
- Baud rate: The maximum baud rate supported by the module is 12 Mbps.
- Data transfer rate: The maximum data transfer rate supported by the module is 1.5 Mbps.
- Addressing modes: The module supports both explicit and implicit addressing modes.
- LED indicators: The module comes with four LED indicators that provide status information about the module’s power, communication, and error status.
Specifications
The BC810K01 3BSE031154R1 ABB product has the following specifications:
- Dimensions: The module measures 119 mm x 40 mm x 117 mm (W x H x D).
- Operating temperature range: The module can operate within a temperature range of -25°C to +60°C.
- Storage temperature range: The module can be stored within a temperature range of -40°C to +85°C.
- Power supply: The module requires a 24V DC power supply.
- Power consumption: The maximum power consumption of the module is 4.8 W.
This concludes the product information content and parameters for the BC810K01 3BSE031154R1 ABB product.
