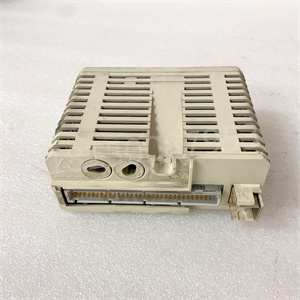

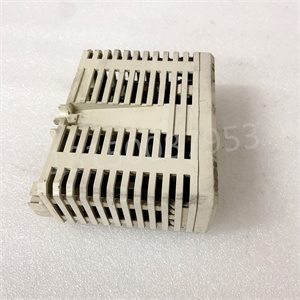

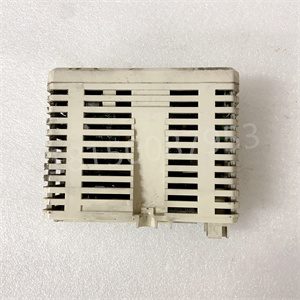

AO810V2 3BSE038415R1 ABB
The AO810V2 is a 1 channel analog output module that is part of the AC 800M control system from ABB. This module provides a voltage or current output signal to control devices such as valves, positioners, indicators, and other devices that require an analog signal.
The module has a range of output options from 0-10V DC or 4-20mA DC, and can provide up to 16 bits of resolution. The module is also capable of handling a variety of signal types, including linear, square root, and custom curve functions.
The module is designed for easy installation and maintenance, with hot-swappable components and a user-friendly interface. The module also has built-in diagnostics and fault detection capabilities, allowing for quick identification and resolution of issues.
Overall, the AO810V2 is a reliable and versatile analog output module that can be used in a variety of industrial and process control applications.
Parameters
- Output range: 0-10V DC or 4-20mA DC
- Resolution: Up to 16 bits
- Signal types: Linear, square root, custom curve functions
- Power consumption: 1.4 W
- Operating temperature: -25°C to +60°C
- Storage temperature: -40°C to +85°C
- Humidity: 5% to 95% RH non-condensing
- Dimensions (WxHxD): 30x119x115 mm
The product information content of the ABB AO810V2 3BSE038415R1 includes the following parameters:
- Output signal range: The module supports a wide range of output signals, including current and voltage signals. The output range can be configured using the ABB controller software.
- Resolution: The module provides high-resolution output signals with a resolution of 16 bits.
- Accuracy: The module is designed to provide accurate output signals with a maximum error of +/- 0.2% of the output range.
- Isolation: The module provides galvanic isolation between the output channels and the power supply, ensuring safe and reliable operation.
- Configuration: The module can be configured using the ABB controller software, which provides a user-friendly interface for configuring the output channels and other parameters.
- Diagnostic information: The module provides diagnostic information, including status and fault indication, which can be used to troubleshoot any issues.
