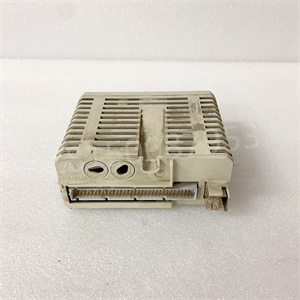

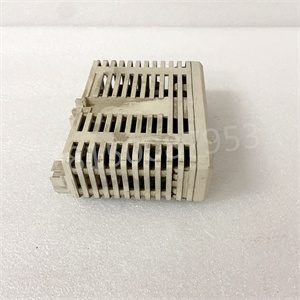

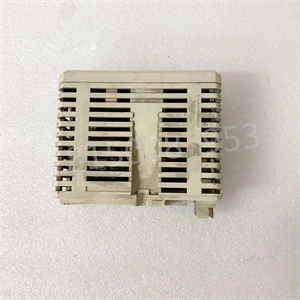

AO810 3BSE008522R1 ABB
The AO810 module is a high-performance analog output module that allows the connection of 8 outputs in the same module. The module provides a high resolution of 16 bits and offers a wide output range of -10 to +10 VDC, 0 to 20 mA, and 4 to 20 mA.
The AO810 module is designed to work with ABB’s Advant Controller 400 series, Freelance 2000, and AC 800M controllers. The module provides a high level of accuracy and reliability, making it ideal for applications that require precise control.
The module’s parameters can be configured using ABB’s Control Builder software, which allows users to set the output range, resolution, accuracy, and other parameters. The module also provides built-in diagnostics and fault detection, making it easy to troubleshoot any issues that may arise.
Key features of the AO810 module include:
- High-performance analog output module
- 16-bit resolution
- Wide output range (-10 to +10 VDC, 0 to 20 mA, and 4 to 20 mA)
- Designed to work with ABB’s Advant Controller 400 series, Freelance 2000, and AC 800M controllers
- Configurable parameters using ABB’s Control Builder software
- Built-in diagnostics and fault detection
Content and Parameters
The ABB AO810 3BSE008522R1 module comes with the following content:
- The AO810 module
- A user manual
- A mounting plate
- A set of screws and washers
The module has the following parameters:
- Operating voltage: 24 V DC
- Operating temperature: -25°C to 70°C
- Output resolution: 16 bits
- Output range: 0 to 10 V DC or 0 to 20 mA
- Output current: 20 mA max per channel
The ABB AO810 3BSE008522R1 is a high-quality analog output module that is designed to provide reliable and accurate performance in a variety of industrial settings. With its compact design, high-resolution output signals, and wide range of operating parameters, this module is an excellent choice for anyone looking for a high-performance analog output module.
