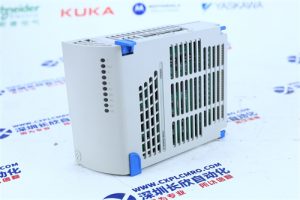

ABB CI801/3BSE022366R1

The ABB CI801/3BSE022366R1 module is a key component in ABB’s automation system and is mainly used to connect the ABB S800 I/O system to the PROFIBUS DP-V1 fieldbus. It acts as a bridge, converting the signals of the I/O module into signals that can be recognized by the PROFIBUS DP-V1 protocol, and enables communication with other devices that support PROFIBUS DP-V1.

Main function

PROFIBUS DP-V1 communication: Realizes seamless connection with PROFIBUS DP-V1 bus, supports a variety of communication modes and protocols.
Signal processing: Processing analog and digital signals from I/O modules, including filtering, scaling, l inearization, etc.
Parameter configuration: The I/O module parameters can be flexibly set through the configuration software, including the range, unit, alarm limit, etc.
Diagnostic function: Provides a powerful diagnostic function, convenient for users to real-time monitoring module operating status, quickly locate and solve faults.
Hot configuration: Supports online hot configuration during system running, improving system flexibility.
Product Specifications (part)
Interface type: PROFIBUS DP-V1
Communication rate: Supports a variety of communication rates, such as 9.6 kbps, 19.2 kbps, etc
Operating temperature: -20℃ ~ +60℃
Mounting method: DIN rail mounting
Protection level: IP20
Power: From the S800 I/O system
Product characteristics
Flexible configuration: Supports multiple configuration options to meet different application requirements.
High reliability: Industrial design, with high reliability and stability.
Easy to use: Provide friendly configuration software, easy to operate and maintain.
Strong compatibility: Compatible with various I/O modules of ABB S800 series.
