ABB 3BHB020538R0001

Product name

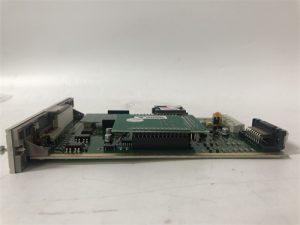

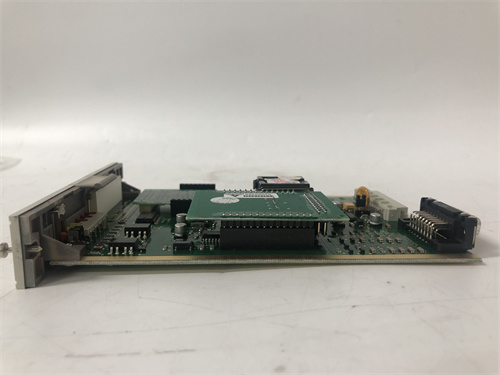

ABB 3BHB020538R0001 module

Product description

The ABB 3BHB020538R0001 module is an analog output module for the ABB AC800M control system. It can provide the following functions:

Eight analog output channels are provided for the output of analog signals.
Supports a variety of analog signal types, including voltage, current, frequency, pulse, etc.
Provides extensive diagnostic functions to help you quickly locate faults.
Product parameter

Power supply voltage: 24 VDC
Current consumption: ≤ 100 mA
Analog signal type: voltage, current, frequency, pulse
Analog signal range: 0-10 V, 0-20 mA, 4-20 mA
Resolution: 12 bits
specification

Dimensions: 120mm x 96mm x 76mm
Weight: 0.5kg
Apply

The ABB 3BHB020538R0001 module can be used in a variety of applications, including:

Control motor, valve and other equipment.
Implement data communication between the controller and external devices.
Expand the functions of the controller.
Main function

Analog output:
Eight analog output channels are provided for the output of analog signals.
Supports a variety of analog signal types, including voltage, current, frequency, pulse, etc.
Resolution: 12 bits
Rich diagnostic functions:
Provides extensive diagnostic functions to help you quickly locate faults.
