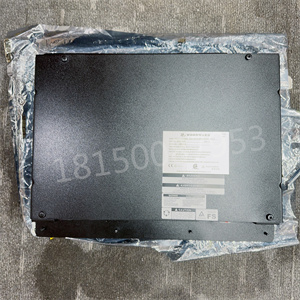

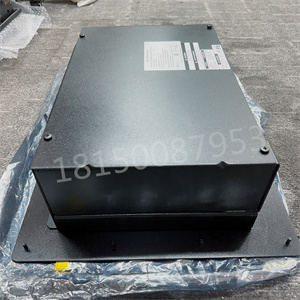

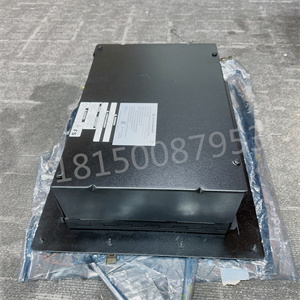

8237-1600 WOODWARD
The 8237-1600 WOODWARD is a high-performance digital load sharing and speed control platform designed for gas and steam turbines. It is equipped with advanced control algorithms and features that ensure precise and reliable operation of the turbine system.
The key parameters of the 8237-1600 WOODWARD include:
- Input Voltage: 24V DC
- Operating Temperature: -40°C to +70°C
- Control Modes: Isochronous, Droop, Auto Synchronization, and Manual
- Communication Interface: RS-485, Ethernet, and CAN bus
- Control Inputs: Analog and digital
- Control Outputs: Analog and digital
- Protection Features: Overvoltage, Overcurrent, Overtemperature, and Short Circuit Protection
The 8237-1600 WOODWARD also comes with a range of configurable settings that can be adjusted to meet the specific needs of the turbine system. These settings include:
- Speed Control Gain: Adjusts the sensitivity of the speed control loop
- Load Sharing Gain: Adjusts the sensitivity of the load sharing control loop
- Deadband: Sets the minimum change in power required to trigger a response from the control system
- Ramp Rate: Sets the rate at which the turbine system ramps up or down in response to changes in load demand
- Startup Delay: Sets the delay time before the turbine system starts up after receiving a start command
In summary, the 8237-1600 WOODWARD is a powerful and versatile digital load sharing and speed control platform that offers precise and reliable operation of gas and steam turbines. Its advanced control algorithms and configurable settings make it an ideal choice for a wide range of turbine applications.
The Woodward 8237-1600 is a digital controller designed for use in gas and steam turbines. It provides precise control for speed, temperature, and pressure, allowing for efficient and reliable turbine operation. The controller features a user-friendly interface with a large LCD screen for easy monitoring and adjustment of turbine parameters. Additionally, the 8237-1600 includes advanced diagnostic capabilities for troubleshooting and maintenance. Overall, the Woodward 8237-1600 is a high-performance controller that helps to optimize turbine performance and ensure safe and reliable operation.
