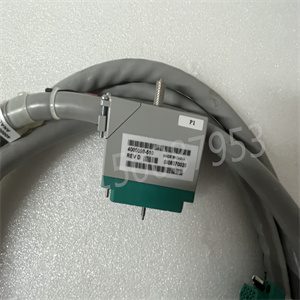

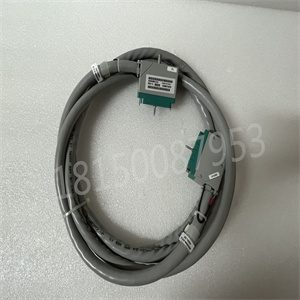

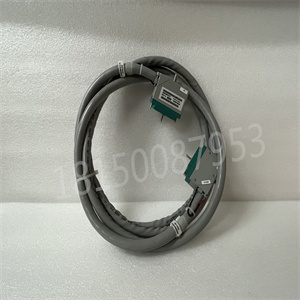

4000098-510 TRICONEX
This document contains information and parameters for the TRICONEX product. TRICONEX is a safety instrumented system designed to protect critical infrastructure and industrial processes. The following are the key features and parameters of the TRICONEX system:
Features:
- Triple modular redundancy (TMR) architecture for high reliability and availability
- SIL 3 certified hardware and software for safety-critical applications
- Cybersecurity features for protection against cyber attacks
- Built-in diagnostics and fault-tolerant design for easy maintenance and troubleshooting
Parameters:
- Input voltage: 24V DC nominal, 18-32V DC operating range
- Power consumption: 15W maximum
- Operating temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 5% to 95% non-condensing
- Dimensions: 8.7″ x 4.9″ x 8.6″ (221mm x 124mm x 219mm)
- Weight: 6.6 lbs (3 kg)
This document provides a detailed description of the 4000098-510 TRICONEX system. The TRICONEX system is a safety instrumented system used in various industries including oil and gas, chemical, and power generation.
The 4000098-510 model is a modular system that consists of a main chassis and various I/O modules. It is designed to provide high reliability and availability in critical applications. The system is capable of performing various safety functions such as emergency shutdown, fire and gas detection, and turbine control.
The main chassis contains the system controller, power supply, and communication interface modules. The I/O modules are hot-swappable and can be easily replaced without affecting the system performance. The system supports various communication protocols including Modbus, OPC, and Ethernet.
The TRICONEX system is designed to meet various safety standards such as IEC 61508, ISA 84.00.01, and NFPA 85. It is also certified by various organizations including TUV, FM, and SIL3.
In summary, the 4000098-510 TRICONEX system is a reliable and high-performance safety instrumented system suitable for critical applications in various industries.
