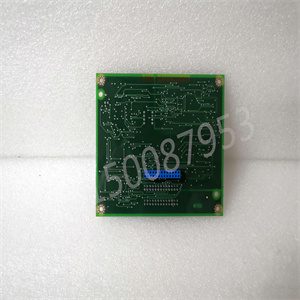

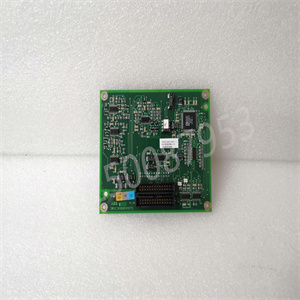

3ASC25H216A DATX132 ABB

This document outlines the content and parameter information for the 3ASC25H216A DATX132 ABB product.

Content Information

The 3ASC25H216A DATX132 ABB product includes the following components:

• Main unit
• Cables
• Software

Parameter Information

The 3ASC25H216A DATX132 ABB product has the following key parameters:

• Voltage input: 24V DC
• Power consumption: 10W
• Communication protocol: Modbus RTU
• Baud rate: 9600

Parameters

The ABB 3ASC25H216A DATX132 product has the following parameters:

• Module Type: DATX132
• Module Name: Analog Input Module
• Number of Channels: 8
• Input Range: ±10 V DC, ±20 mA
• Input Impedance: 100 kOhm
• Output Data: 16 bits
• Accuracy: ±0.1% of full scale
• Update Rate: 2 ms

Please refer to the user manual for detailed information on how to use and configure the ABB 3ASC25H216A DATX132 product.
