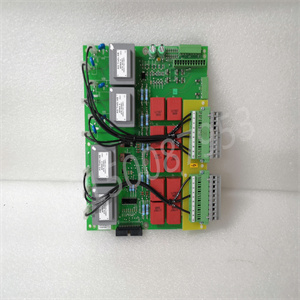

3ASC25H208 DATX100 ABB

Product Categories

Hot Products

3ASC25H208 DATX100 ABB

The ABB 3ASC25H208 DATX100 module has the following parameters:

Input voltage:24 VDC

Power consumption:4.8 W

Input signal range:0-10 VDC or 4-20 mA

Output signal range:0-10 VDC or 4-20 mA

Accuracy:±0.1%of span

Operating temperature:-25°C to+70°C

Storage temperature:-40°C to+85°C

Humidity:10%to 95%non-condensing

Dimensions(H x W x D):99 x 22.5 x 114.5 mm

Weight:120 g

3ASC25H208 DATX100 ABB

The 3ASC25H208 DATX100 is a product manufactured by ABB. It is a sensor that is used to detect the temperature of various industrial machines and equipment. The sensor is designed to measure temperatures ranging from -50°C to 260°C.

The DATX100 sensor is small in size and can be easily installed in tight spaces. It has a stainless steel housing that provides protection against water and dust. The sensor is also resistant to vibrations and shocks, making it ideal for use in harsh industrial environments.

The output signal of the DATX100 sensor is a 4-20mA signal that can be easily integrated into a control system. The sensor can also be configured to provide a temperature reading in degrees Celsius or Fahrenheit.

The DATX100 sensor has a fast response time and provides accurate temperature readings. It is widely used in various industries, including oil and gas, chemical, and power generation.

In terms of parameter, the DATX100 sensor has a voltage range of 12-30V DC. It has a maximum current consumption of 22mA and a response time of less than 1 second. The sensor has a measurement accuracy of ±0.5°C and a resolution of 0.1°C.

In conclusion, the 3ASC25H208 DATX100 sensor from ABB is a reliable and accurate temperature sensor that is widely used in various industrial applications. With its small size, rugged construction, and fast response time, it is an ideal choice for monitoring temperatures in harsh environments.

3ASC25H208 DATX100 ABB

This document contains important information regarding the ABB 3ASC25H208 DATX100 product, including its content and parameters.

Content

The ABB 3ASC25H208 DATX100 product includes the following components:

  • One DATX100 module
  • One user manual

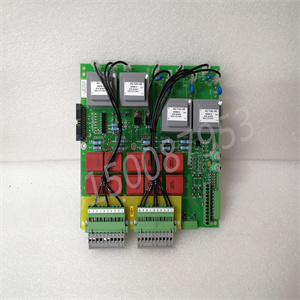

3ASC25H208 DATX100 ABB1

Parameters

The ABB 3ASC25H208 DATX100 module has the following parameters:

  • Input voltage: 24 VDC
  • Power consumption: 4.8 W
  • Input signal range: 0-10 VDC or 4-20 mA
  • Output signal range: 0-10 VDC or 4-20 mA
  • Accuracy: ±0.1% of span
  • Operating temperature: -25°C to +70°C
  • Storage temperature: -40°C to +85°C
  • Humidity: 10% to 95% non-condensing
  • Dimensions (H x W x D): 99 x 22.5 x 114.5 mm
  • Weight: 120 g

Please refer to the user manual for additional information on installation, operation, and maintenance of the ABB 3ASC25H208 DATX100 module.

3ASC25H208 DATX100 ABB2
