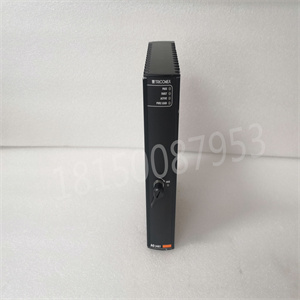

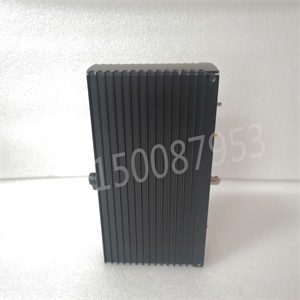

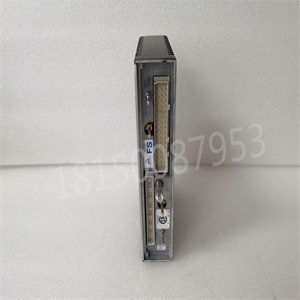

3481 TRICONEX
This document provides detailed information about the parameters and content of the 3481 TRICONEX product. The TRICONEX is a safety instrumented system designed to prevent accidents and protect assets in various industries.
Technical Specifications
- Number of input/output (I/O) modules: 18
- Number of channels per module: 8
- Maximum number of I/O points: 144
- Communication protocols supported: Modbus, Modbus TCP, OPC DA, OPC UA, Ethernet/IP
- Power supply: 24V DC
- Operating temperature range: -40°C to +70°C
- Relative humidity: 10% to 95% non-condensing
- Dimensions: 438.2 mm x 199.4 mm x 144.5 mm
Parameters
The TRICONEX system allows users to configure various parameters to suit their specific needs. Some of the important parameters are:
- Safety Integrity Level (SIL): The TRICONEX system is certified for SIL 3, which means it has a very low probability of failure on demand.
- Voting Logic: The system uses a 2-out-of-3 (2oo3) voting logic to ensure that the outputs are correct and safe.
- Alarm and Trip Settings: Users can set the alarm and trip values for each input channel to trigger alarms or shut down the system if the values exceed the set limits.
- Communication Settings: The TRICONEX system supports various communication protocols, and users can configure the communication settings based on their requirements.
- Password Protection: The system provides password protection to prevent unauthorized access and ensure the safety and security of the system.
Conclusion
The TRICONEX system is a reliable and robust safety instrumented system that provides high-quality protection to assets and personnel in various industries. The technical specifications and parameters of the system make it highly configurable and adaptable to meet the specific needs of different applications.
