1C31181G01 EMERSON - Changxin Automation

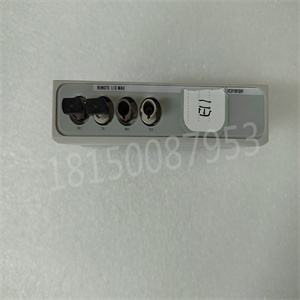

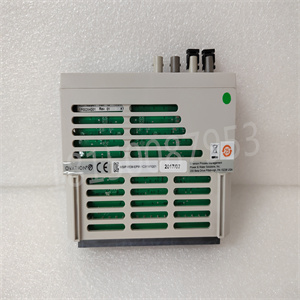

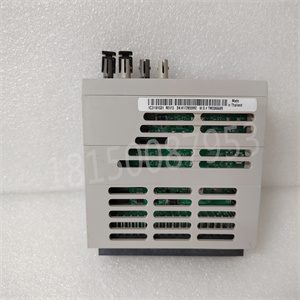

1C31181G01 EMERSON

1C31181G01(2)

1C31181G01(3)

1C31181G01 EMERSON

Parameter Specifications

Power supply voltage:24VDC

Operating temperature range:-40°C to 70°C

Maximum output current:2A per channel

Output voltage range:0V to 32VDC

Output signal delay time:0.1ms

Isolation voltage:1500VAC

Module dimensions:12.6cm x 20.3cm x 3.0cm

Description

1C31181G01 EMERSON

Overview

The 1C31181G01 is a digital output module used in the DeltaV distributed control system. It is designed to provide high-speed digital output signals to field devices, such as valves and actuators.

Features

32 high-speed digital output channels
Capable of sinking up to 2A per channel
Supports pulse width modulation (PWM)
Fault detection and diagnostic capabilities

Parameter Specifications

Power supply voltage: 24VDC
Operating temperature range: -40°C to 70°C
Maximum output current: 2A per channel
Output voltage range: 0V to 32VDC
Output signal delay time: 0.1ms
Isolation voltage: 1500VAC
Module dimensions: 12.6cm x 20.3cm x 3.0cm

Compatibility

The 1C31181G01 is compatible with the following DeltaV control system versions:

DeltaV version 6.3 or later
DeltaV S-series

Conclusion

The 1C31181G01 digital output module is a reliable and high-performance solution for controlling field devices in the DeltaV distributed control system. Its high-speed channels, PWM capabilities, and fault detection features make it a popular choice among industrial automation professionals.
