1756-RM AB

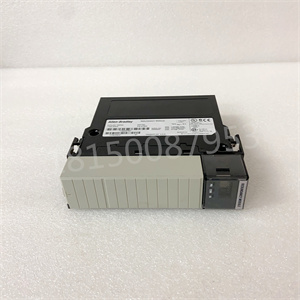

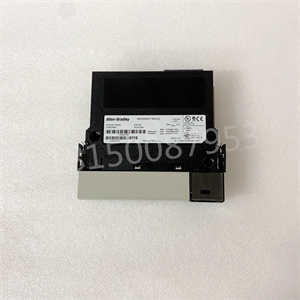

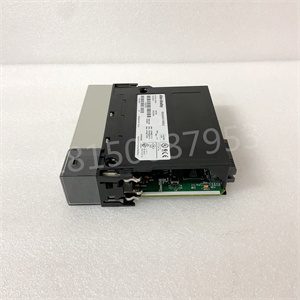

This document contains the necessary information about the 1756-RM AB product. The 1756-RM AB is a ControlLogix Redundancy Module. It provides a redundant control system for the Allen-Bradley ControlLogix controllers.
Features
- Redundant Control System
- LED Indicators for status
- Configurable timeout periods
- Automatic failover
Technical Specifications
- Operating Voltage: 10-30V DC
- Current Consumption: 100mA max
- Operating Temperature Range: 0-60°C
- Storage Temperature Range: -40-85°C
- Dimensions: 4.9 x 5.5 x 3.1 inches
- Weight: 0.6 lbs
Parameters
- Timeout Period: This parameter can be configured to determine the amount of time the system waits before switching to the redundant controller in the event of a failure.
- Network Delay: This parameter can be adjusted to compensate for network latency and ensure accurate communication between the primary and redundant controllers.
- Failover Mode: This parameter determines whether automatic or manual failover is used in the event of a failure.
