1756-PA72 C AB - Changxin Automation

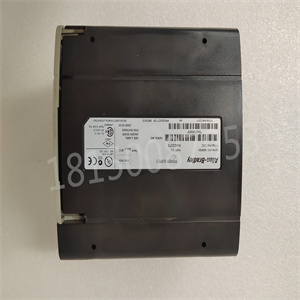

1756-PA72 C AB

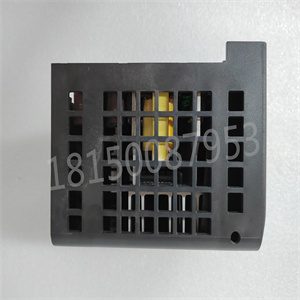

1756-PA72 C(1)

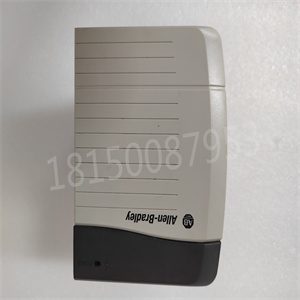

1756-PA72 C(2)

1756-PA72 C AB

Electrical Characteristics

Input Voltage:85-265V AC,47-63 Hz or 110-300V DC

Power Consumption:130 W maximum

Inrush Current:30 A maximum for 120V AC input

Output Voltage:5V DC,24V DC,120V AC

Output Current:10.0 A at 5V DC,8.0 A at 24V DC,2.8 A at 120V AC

Ripple:50 mVp-p maximum at rated load

Efficiency:88%typical at full load

Description

1756-PA72 C AB

Product Overview

The 1756-PA72 C AB is a power supply module that provides 10.0 A at 5V DC, 8.0 A at 24V DC, and 2.8 A at 120V AC. It is designed for use with Allen-Bradley ControlLogix programmable automation controllers.

Features

Provides reliable power to the ControlLogix system
Can be used with a range of input voltages
Has built-in overvoltage and overcurrent protection
Compact design for easy installation

Electrical Characteristics

Input Voltage: 85-265V AC, 47-63 Hz or 110-300V DC
Power Consumption: 130 W maximum
Inrush Current: 30 A maximum for 120V AC input
Output Voltage: 5V DC, 24V DC, 120V AC
Output Current: 10.0 A at 5V DC, 8.0 A at 24V DC, 2.8 A at 120V AC
Ripple: 50 mVp-p maximum at rated load
Efficiency: 88% typical at full load

Environmental Characteristics

Operating Temperature: 0-60°C (32-140°F)
Storage Temperature: -40-85°C (-40-185°F)
Relative Humidity: 5-95% non-condensing

Regulatory Compliance

The 1756-PA72 C AB is compliant with the following standards:

UL 508
CE
cULus Listed
