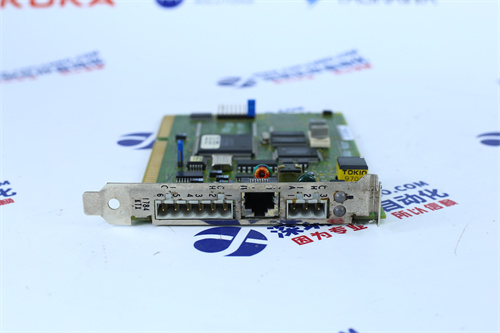

HIMA K9203A
The HIMA K9203A is a high-speed counting module for HIMA safety control systems. It can be used to monitor and record fast events and pulses, such as signals from sensors, encoders or other devices, to provide accurate data support for the system. K9203A has the following features:
High-speed counting: The K9203A monitors and accurately records fast events and pulse signals from sensors, encoders or other devices in real time, with counting frequencies up to 1 MHz.
High resolution counting: The K9203A provides high resolution counting capabilities to ensure accurate measurement of fast events with resolutions up to 1 nanosecond.
Multiple input channels: The K9203A usually has multiple input channels and can receive signals from multiple devices or sensors at the same time, achieving multi-channel parallel processing.
Data logging and reporting: The K9203A is capable of recording count data and reporting the data to the control system or operator if needed. This helps to monitor and document changes in system performance and processes, providing data support for decision making.
Product parameters:
Input voltage: 24 VDC
Number of input channels: 4
Maximum counting frequency: 1 MHz
Count resolution: 1 nanosecond
Operating temperature range: -40°C to +85°C
Storage temperature range: -55°C to +125°C
Dimensions: 110 x 75 x 45 mm
Weight: 0.4kg
