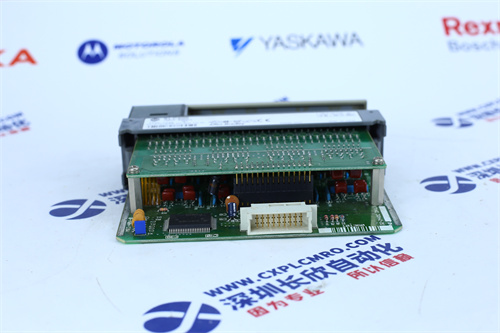

GE IC200ALG620
The GE IC200ALG620 is a VersaMax I/O Series 4-channel resistance Temperature detector (RTD) input module manufactured by GE Fanuc (now Emerson Automation). The module has four RTD inputs, is compatible with 3-wire or 4-wire RTD devices, and supports multiple types of RTD sensors such as platinum, copper, nickel, and nickel/iron, as well as direct resistance measurements such as 0-500 ohms and 0-3000 ohms. Each channel is equipped with a dedicated analog-to-digital (ADC) converter circuit with a conversion resolution of 16 bits. This module is specifically designed for temperature measurement and sensor integrated resistance Temperature Detector (RTD) modules, capable of detecting open RTD, input short circuit, underrange, overrange, non-volatile memory storage faults, wiring faults and high/low alarms, and reporting these faults and alarms to the host programmable logic controlle
r (PLC) for integrating1.
Product parameters:
Brand: GE/ General Electric (now Emerson Automation)
Model: IC200ALG620
Function: 4-channel resistance Temperature detector (RTD) input module
Input type: Compatible with 3-wire or 4-wire RTD devices
Supported RTD sensors: platinum, copper, nickel, nickel/iron and other types
Direct resistance measurement range: 0-500 ohms and 0-3000 ohms
