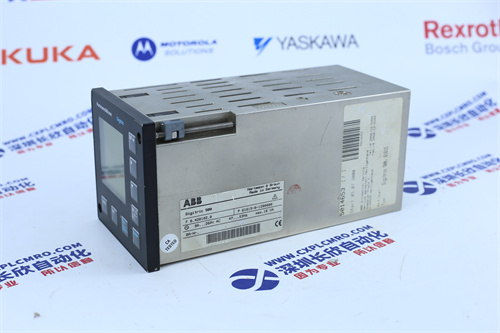

ABB PFTL201C 10KN 3BSE007913R10
The ABB PFTL201C 10KN 3BSE007913R10 is a high-performance, highly reliable IGCT module for industrial applications requiring high precision and high stability control. The module uses advanced packaging technology and has the following features:
High voltage: Rated voltage up to 4500V
High current: Rated current up to 10KA
Low loss: Low switching loss, high efficiency
Fast switching: fast switching speed, good dynamic response performance
High reliability: Using mature packaging technology, high reliability
Product parameters:
Parameter value unit
Rated voltage 4500 V
Rated current 10000 A
Switching loss ≤ 2.5J
Switching speed ≤ 1.5µs
Operating temperature -40 ~ 125 ℃
Dimensions 91 x 125 x 45 mm
