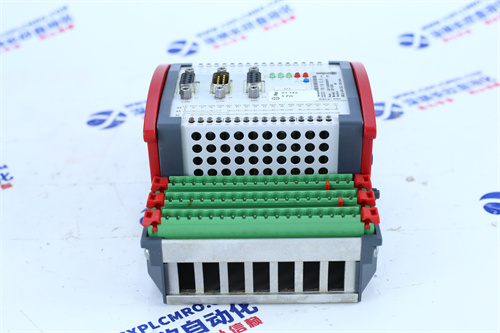

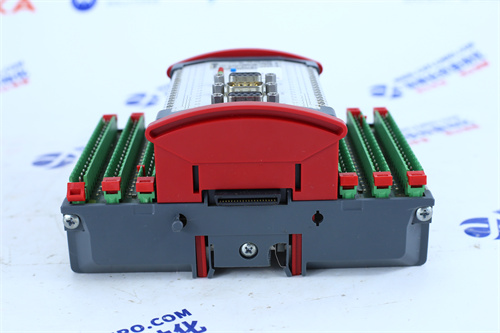

ABB CI801
The ABB CI801 is a fieldbus communication interface module for ABB S800 I/O systems. It acts as a bridge between the S800 I/O system and the host computer or other devices, responsible for signal processing, monitoring information collection, parameter setting and other functions. The CI801 module supports a variety of fieldbus protocols and can be flexibly configured according to actual requirements.
Main function
Signal processing: Processing of input/output signals, including linearization, scaling, unit conversion, etc.
Monitoring information collection: Collects the diagnosis information and running status of I/O modules.
Parameter Settings: Set the parameters of the I/O module, such as the range, unit, and filter.
Fieldbus communication: Supports a variety of fieldbus protocols, such as PROFIBUS DP, FOUNDATION Fieldbus, etc.
Hot configuration: Online configuration of modules when the system is running.
HART communication: Supports the HART sensor protocol.
Product parameters and specifications
Dimensions: 85.8 mm (W) x 136 mm (H) x 58.5mm (D)
Weight: 0.3kg
Operating temperature: -20°C to 60°C
Power Supply: Powered by the S800 I/O system
Interface: Multiple fieldbus interfaces are supported, depending on the model
